EZY Torque Precision Cathead
Description

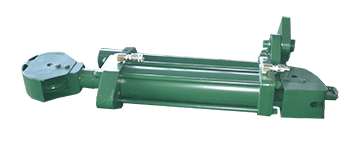

The EZY Torque which operates manual tongs remotely and it is capable of providing a very high force pull. The hydraulic power unit runs the cylinder. The cylinder operates in conjunction with the cathead. The cylinder extends 25”. In the upright position, this typically requires a hole in the floor and no obstructions below. In the inverted position, clearance is needed overhead. The cable in either installation has to be at tong height. The upright position is preferred because it 1) takes the least space, 2) requires the least bracing material, 3) is easier to service, and 4) uses less connection hose. However, rig conditions may make the inverted installation more practical. The cylinder’s supporting structure is not provided.
