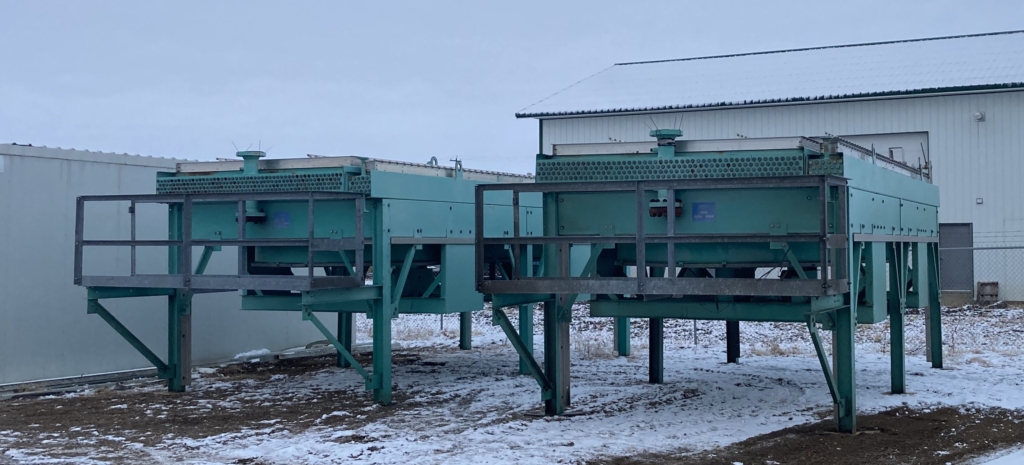

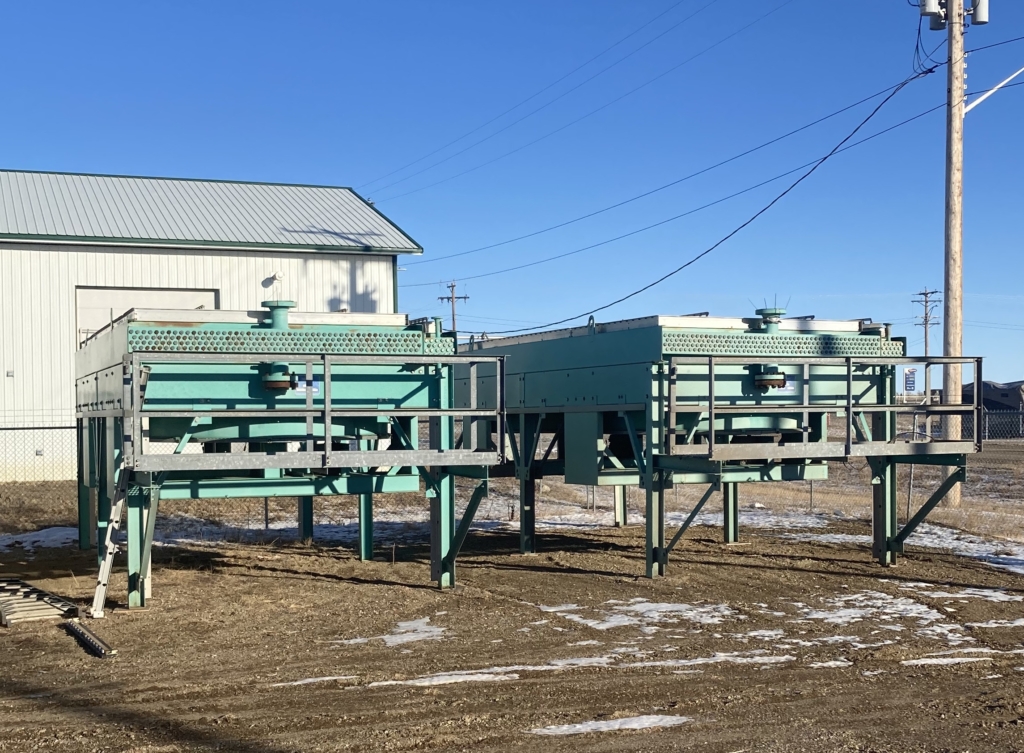

FORCED DRAFT COOLERS (2)
Description
Section A: 1.00MMBTU/H DP: Atmospheric Surface Per Unit-Finned Tube: 10,410 Ft.² Tubes: 198 x 1? OD x 14? Long Tube Material: SA-214 Inlet / Outlet: 6? 600# RF Section B: 0.127MMBTU/H DP: Atmospheric Surface Per Unit-Finned Tube: 2,485 Ft.² Tubes: 22 x 1? OD x 14? Long Tube Material: SA-214 Inlet / Outlet: 1½” 600# RF Fans Per Unit: Two 15 HP (575/3/60) Shipping Dimensions: 132? W x 331? L Shipping Weight: 12,200 Lbs. each
