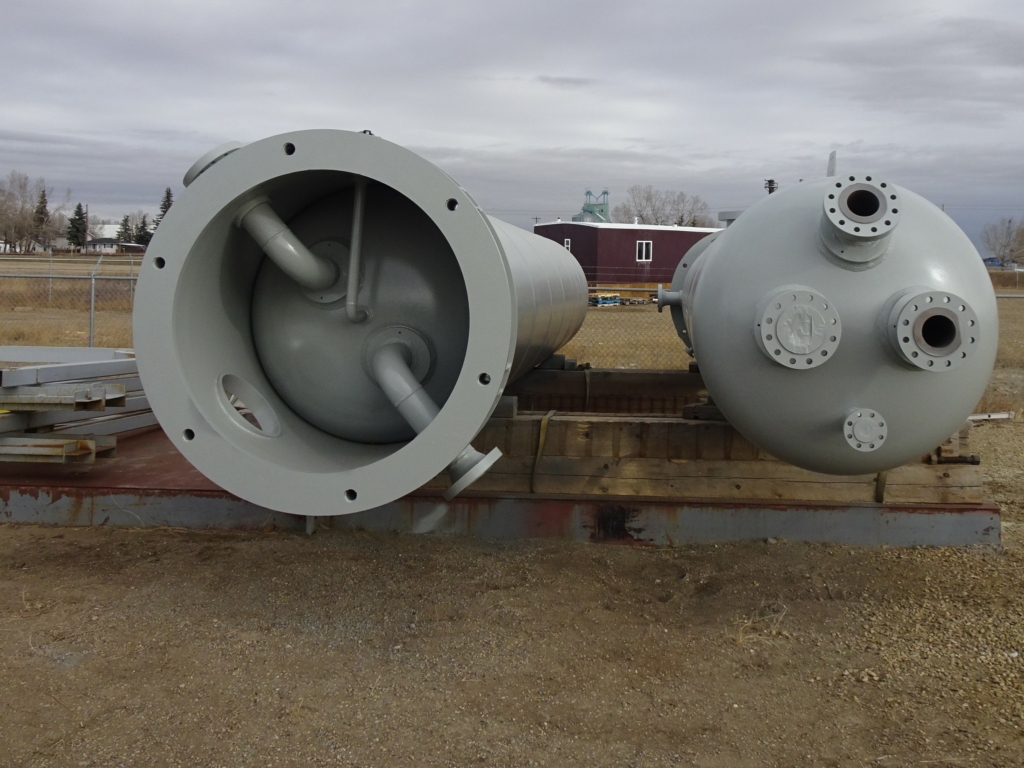

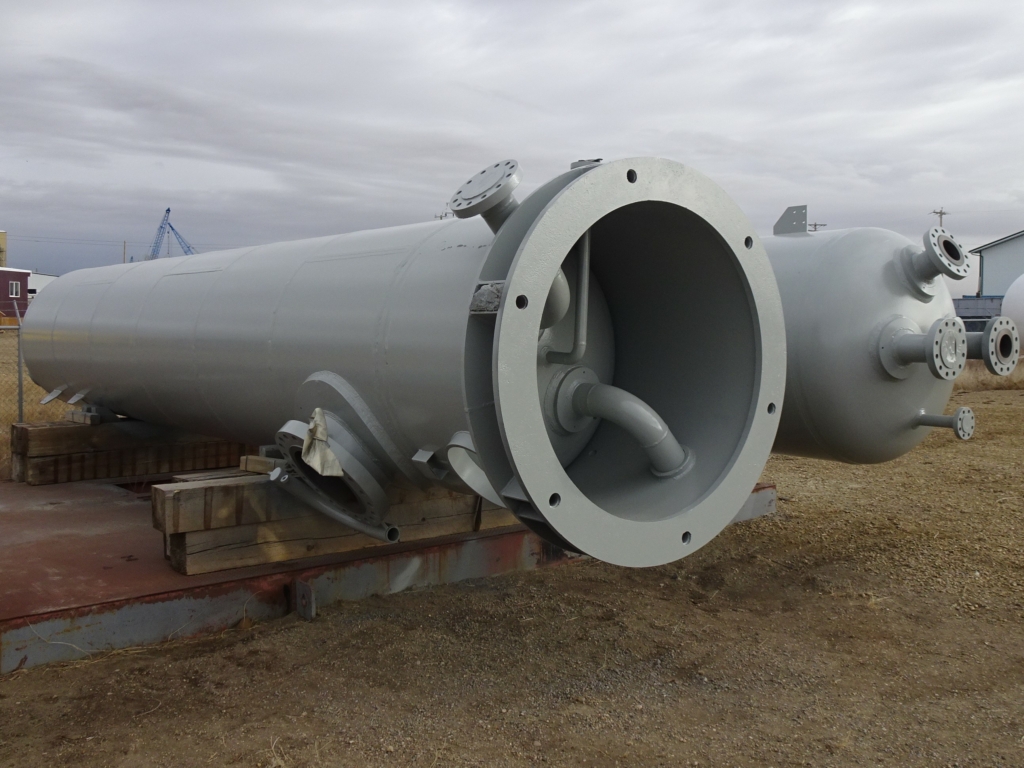

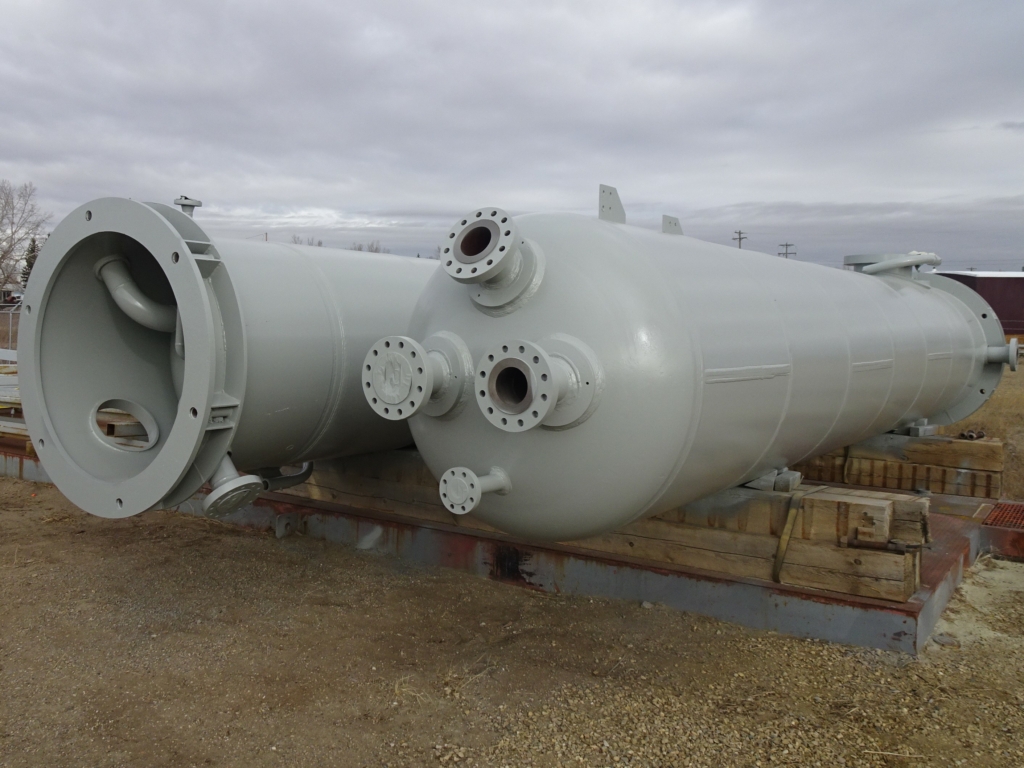

ADSORBER TOWERS – 2

Description

Built by Maloney in 1973 60? OD x 23?-8? S/S 30?-2? OAL 1100 PSI @ 600° F Corrosion Allowance: .125? MDMT: RT-1 CRN #: B 1834.2 “U” Stamp: Yes Head Material: SA-516-70N Shell Material: SA-516-70N Inlet: 6? 600# RFWN Outlet: 6? 600# RFWN Fill: 6? 600# RFWN Manway: 18? 600# RFWN Volume: 440 ft³ Insulated: No Internal Coating Head: 3? Micracrete Internal Coating Shell: 2? Durolite & 1? Novacrete Weight Empty: 42,000 Lbs.

Prize: $1,100,000.00
