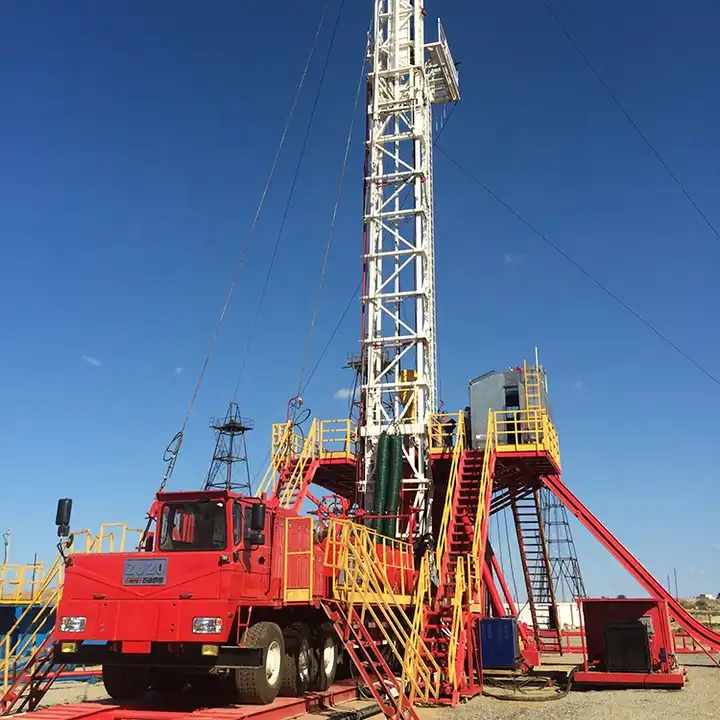

Oilfield Well Oil Drilling Equipment Rig trailer-mounted oil well drill rig for oil well drilling
Description
Core Components Engine, Motor Place of Origin Shandong, China Weight 85000 KG Warranty 12 Months Condition New Type Rotary Drilling Rig Power Type Diesel Brand Name BEYOND Model Number ZJ40CZ Dimension(L*W*H) 23*3.2*4.8 (m) Transmission Mode Hydraulic +Mechnical Max. hook load 2250 KN Drive mode 14*10 Nominal drilling depth (4 1/2" DP) 4000m Mast height 38m Rig floor height 6 m Wirerope diameter 32mm Hydraulic system 21 Mpa Travelling system 6*5 Pneumatic system 0.8 Mpa
