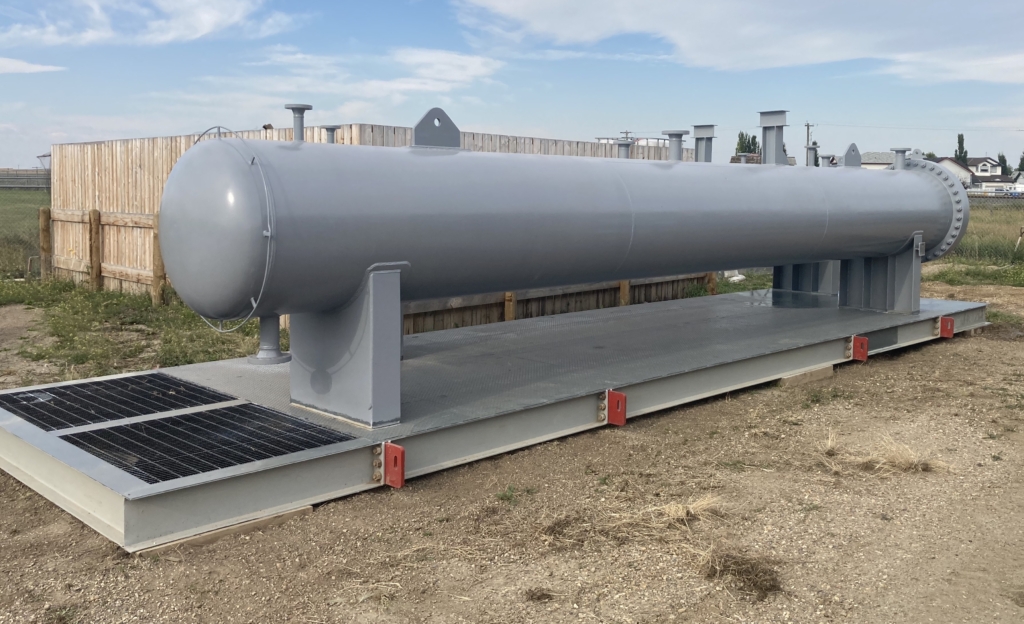

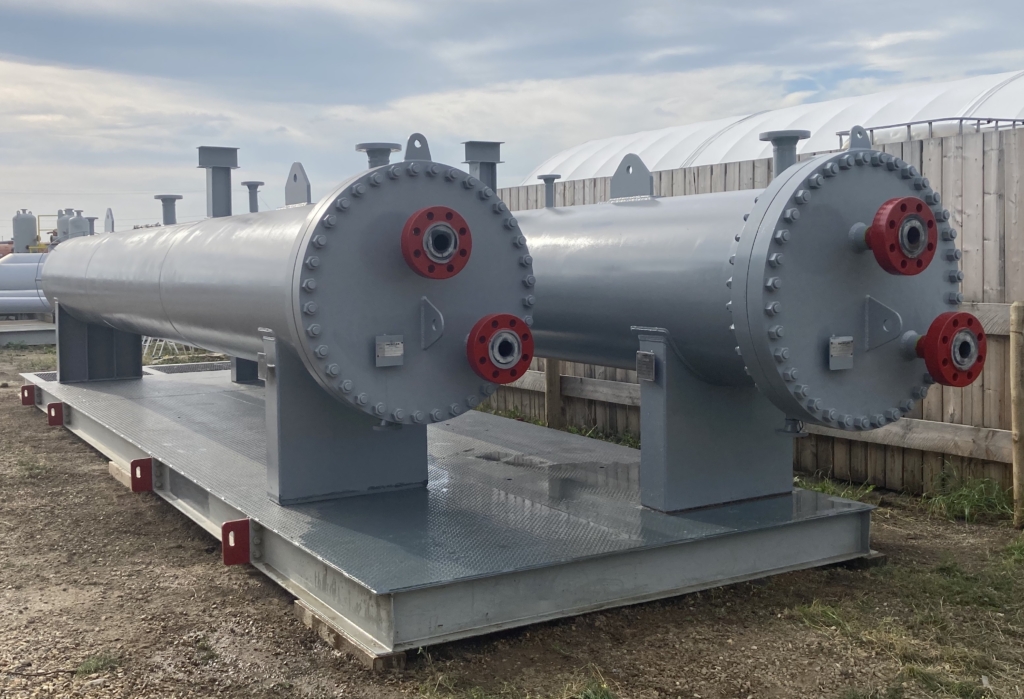

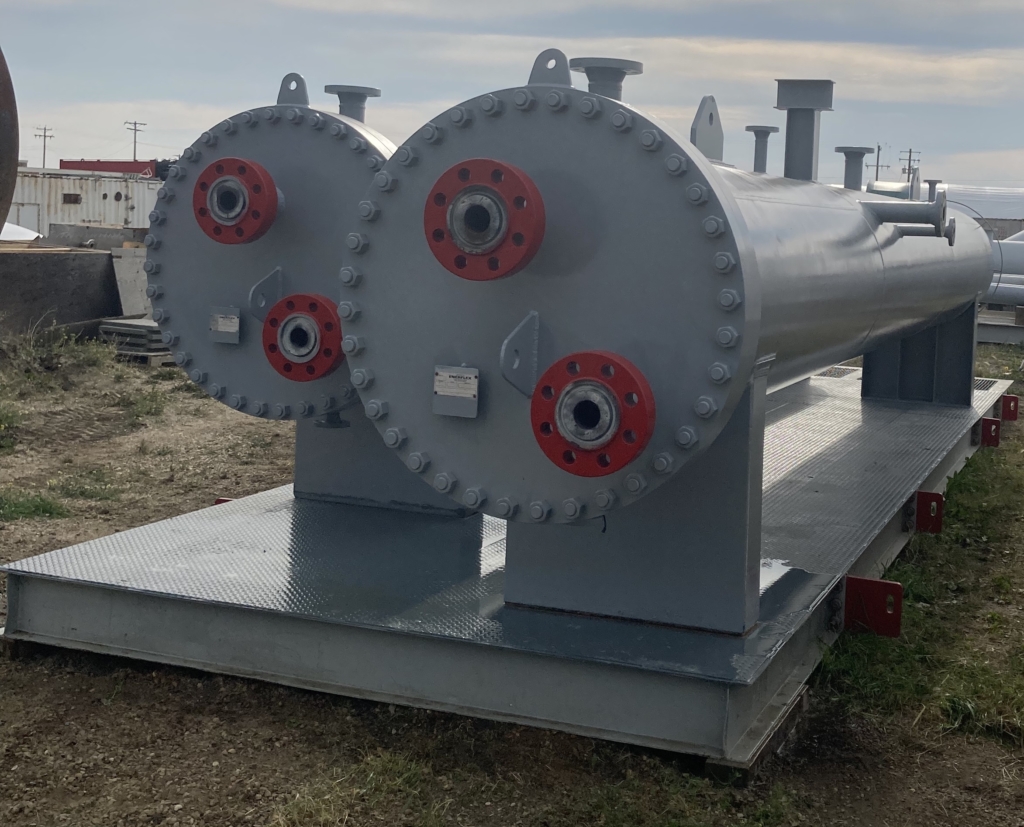

EXCHANGERS – SHELL & PIPE (PAIR) Manufacturer: Enerflex in 2009

Description

HEAT EXCHANGERS – SHELL & PIPE (PAIR) Size: 42? OD x 30?-0? S/S Shell: 190 PSI @ 400° F Pipe: 4500 PSI @ 400° F 8 Passes of 4? Sch. XXL Sour Service Head Material: SA-516-70N Shell Material: SA-516-70N Pipe Material: SA-333-Gr. 6 Corrosion Allowance: 0.125? P.W.H.T: Yes Radiography: 100% (RT-1) “U” Stamp: Yes Insulated: No Shell Inlet: 4? 300# RFWN Shell Outlet: 4? 300# RFWN Pipe Inlet: 4? 2500# RFWN Pipe Outlet: 4? 2500# RFWN Weight: 20,000 LBS (Each)

Prize: $1,200,300.00
